388T Backhoe Loader With 6 in 1 Bucket,Telescopic Arm

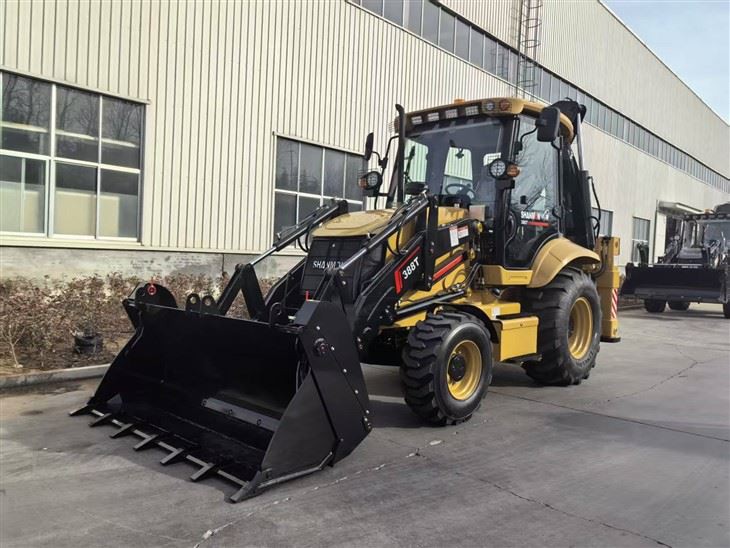

388T Backhoe loader with 6 in 1 bucket and telescopic arm
The 388T backhoe loader is a deeply improved version of the shanmon 388 backhoe loader. This machine adopts more international components, including the Italian Carraro axles, Carraro transmission box, Weichai or Cummins diesel engine. Compared to the 388, Carraro axles adopts wet drive brakes, resulting in higher driving speed and more flexible operation. The shanmon 388T has four forward gears and four reverse gears, and the travel speed is 38 Km/h. With muti-purpose bucket and variable attachments, 388T will be the backbone of the construction industry. Here is the specification:
|
总体尺寸 Overall dimension |
整车操作质量Operating weight |
9300kg |
|
整机外形尺寸 Overall dimension(L×W×H) |
5800×2297×3844mm |
|
|
轴距Wheel base |
2280mm |
|
|
轮距Wheel tread |
1785mm |
|
|
最小离地间隙Ground clearance |
300mm |
|
|
性能 Performance |
装载斗容Load bucket capacity |
1.0m3 |
|
崛起力Load breakout force |
47KN |
|
|
装载举升能力Load lifting capacity |
2500KG |
|
|
铲斗卸载高度Bucket unloading height |
2807mm |
|
|
铲斗卸载距离Bucket unloading distance |
801mm |
|
|
铲挖深度Digging depth |
30mm |
|
|
反铲斗容Backhoe bucket capacity |
0.3m3 |
|
|
挖斗挖掘力Backhoe digging force |
49.8KN |
|
|
挖掘回转角Backhoe swing angle |
180° |
|
|
挖斗卸载高度Bucket unloading height |
4720mm |
|
|
最大挖掘深度Max.Digging depth |
5246mm |
|
|
最大牵引力Max.Traction force |
76KN |
|
|
发动机 Engine (可选配康明斯/玉柴 Optional Cummins/Yuchai ) |
型号Model |
CUMMINS Euro III QSB3.9-C100 |
|
型式Type |
电控高压共轨Electrically controlled high-pressure common rail |
|
|
气缸数-内径×行程 Cylinders - Inner diameter × stroke |
4-102×120 |
|
|
额定功率Rated power |
74KW |
|
|
额定转速Rated speed |
2200r/min |
|
|
最低燃油率Min.fuel consumption |
≤216g/km.h |
|
|
最大扭矩Max.torque |
380N.m |
|
|
排量Displacement |
3.9L |
|
|
转向系统 Steering system |
型式Type |
液压转向hydraulic steering |
|
转向器型号Steering gear model |
BZZ-250 |
|
|
工作泵排量Pump displacement |
63ml/r |
|
|
工作泵型号Pump model |
Gear pump |
|
|
转向角Steering angle |
±41° |
|
|
最小转弯半径Min.Turning radius |
6581mm |
|
|
驱动桥 Driving axle |
型号Model |
26.22-1920/28.43M-1654 |
|
生产厂家Manufacturer |
意大利卡拉罗Italy carraro |
|
|
额定前桥载荷Rated front axle load |
22.5T |
|
|
额定后桥载荷Rated rear axle load |
18.75T |
|
|
传动系统 Transmission |
变速箱Gearbox |
定轴式动力换挡 Countershaft Powershif |
|
型号Model |
TCB80 SPS 4WD |
|
|
档位数Gears |
4F,4R前进4档,后退4档 |
|
|
液力变矩器Hydraulic torque converter |
carraro |
|
|
进口压力Inlet pressure |
- |
|
|
出口压力Outlet pressure |
1.3-1.55Mpa |
|
|
冷却方式Cooling mode |
油冷压力循环 Oil-cooling pressure circulation |
|
|
轮胎 tyre |
前/后规格Front/Rear Model |
14-17.5/19.5L-24 |
|
前轮气压Front Tyre Pressure |
0.4Mpa |
|
|
后轮气压Rear Tyre Pressure |
0.35Mpa |
|
|
最高车速Max.Travel Speed |
38Km/h |
|
|
制动系统 Brake system |
行车制动Traveling Brake |
湿式桥,内置式,自调节,自平衡 Wet internal self- regulatic self-balance type |
|
驻车制动Parking brake |
手动制动Manual brake |
|
|
系统压力 System pressure |
装载液压系统Loading hydraulic system |
20Mpa |
|
挖掘液压系统Excavation hydraulic system |
20Mpa |
|
|
转向液压系统Steering hydraulic system |
14Mpa |
|
|
驾驶室Cabin |
防翻滚驾驶室ROPS & FOPS |
|
|
其他选配Optional |
GPS系统GPS system |
Vehicle outline dimensional
