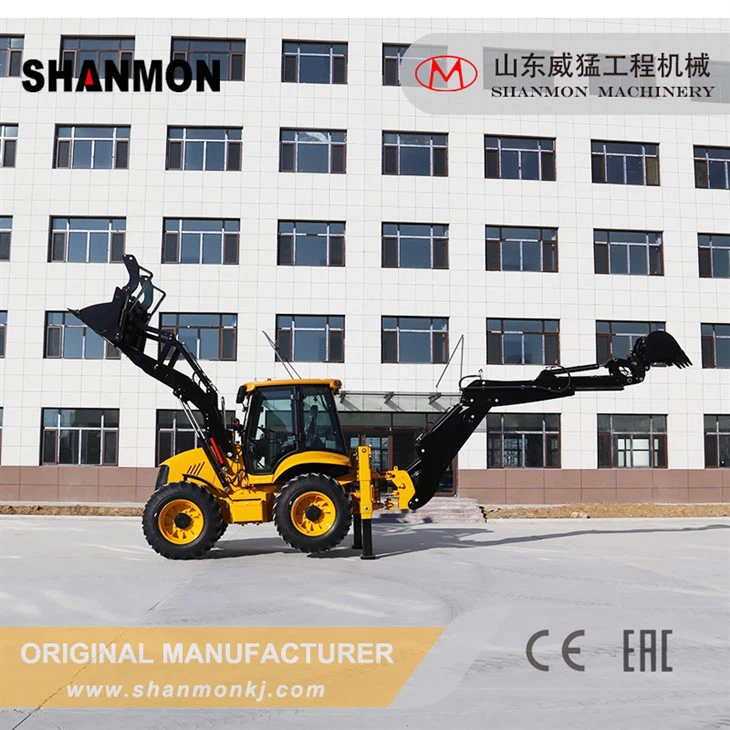

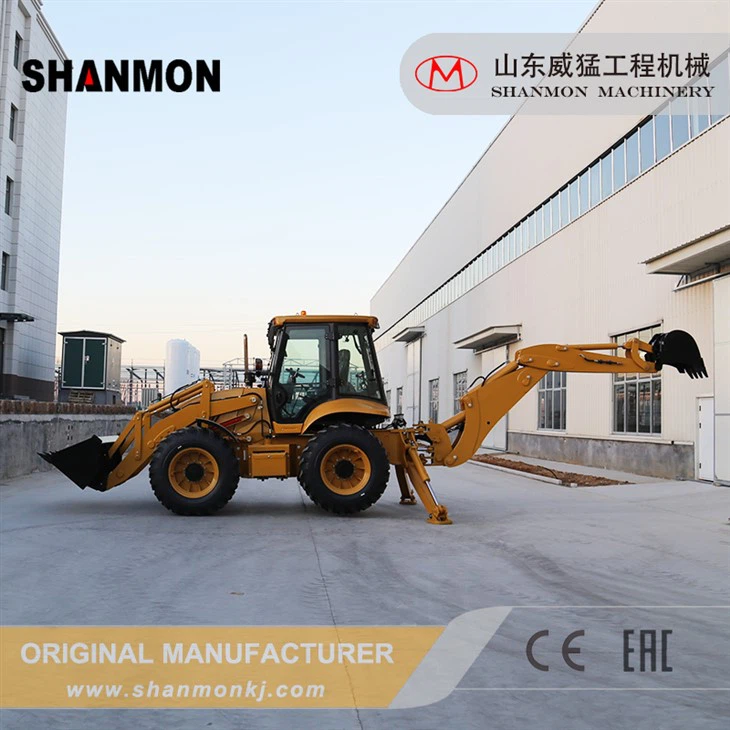

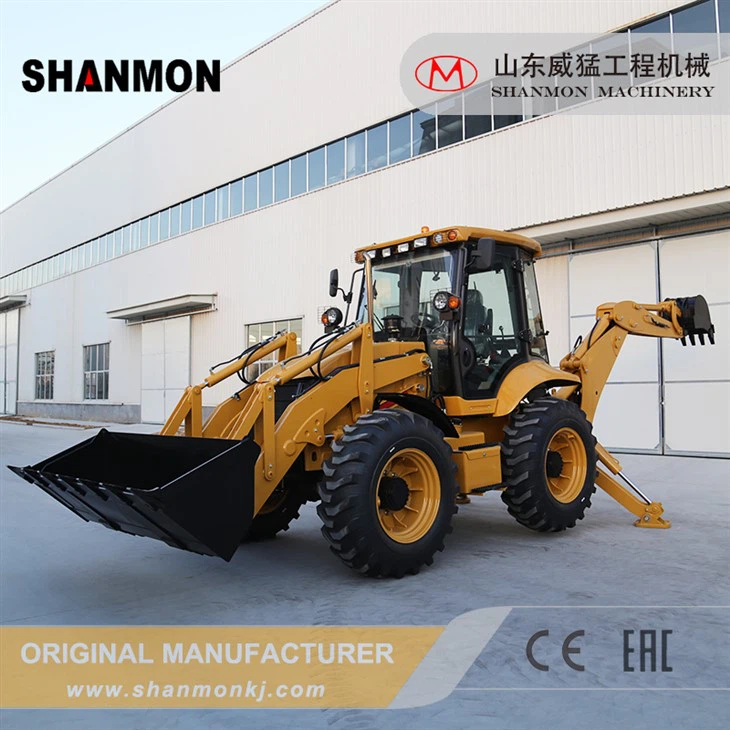

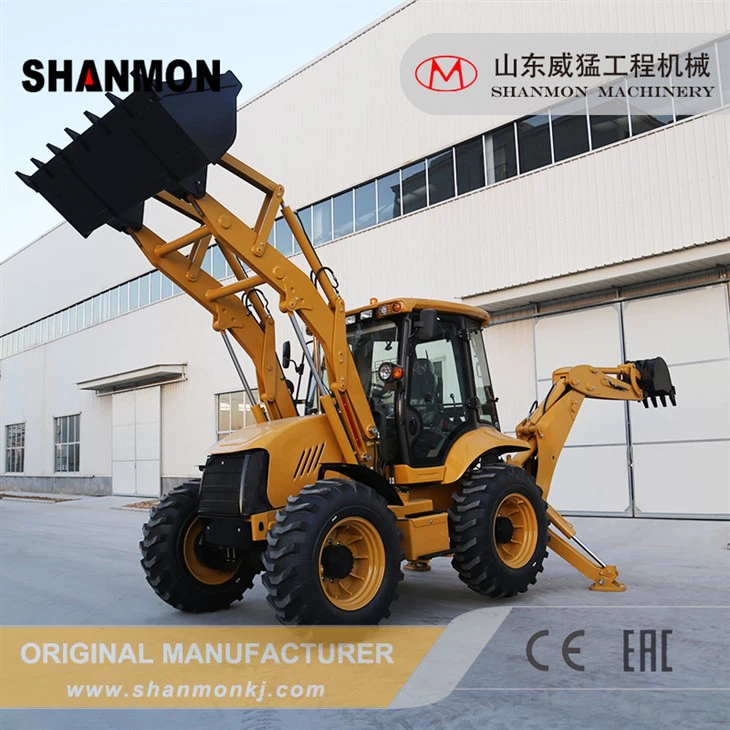

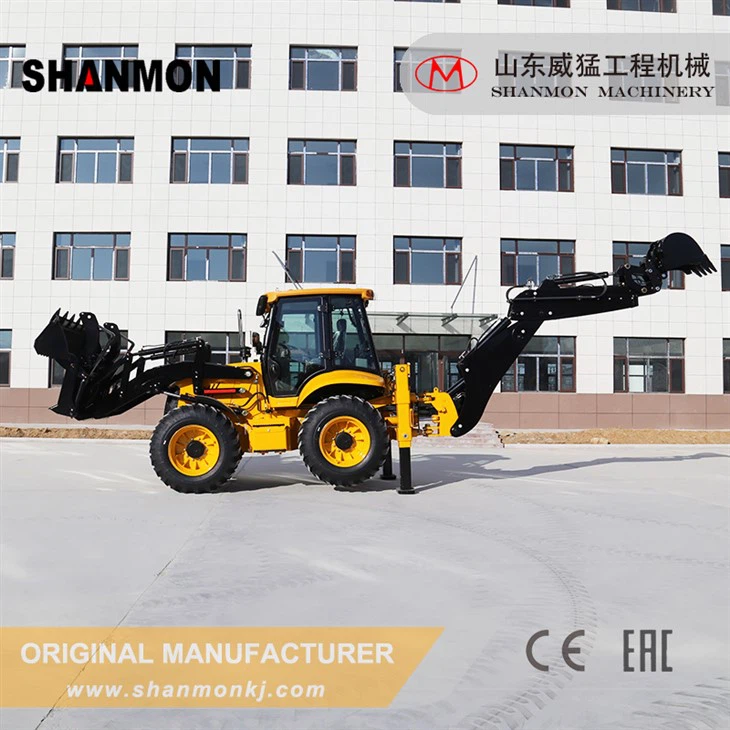

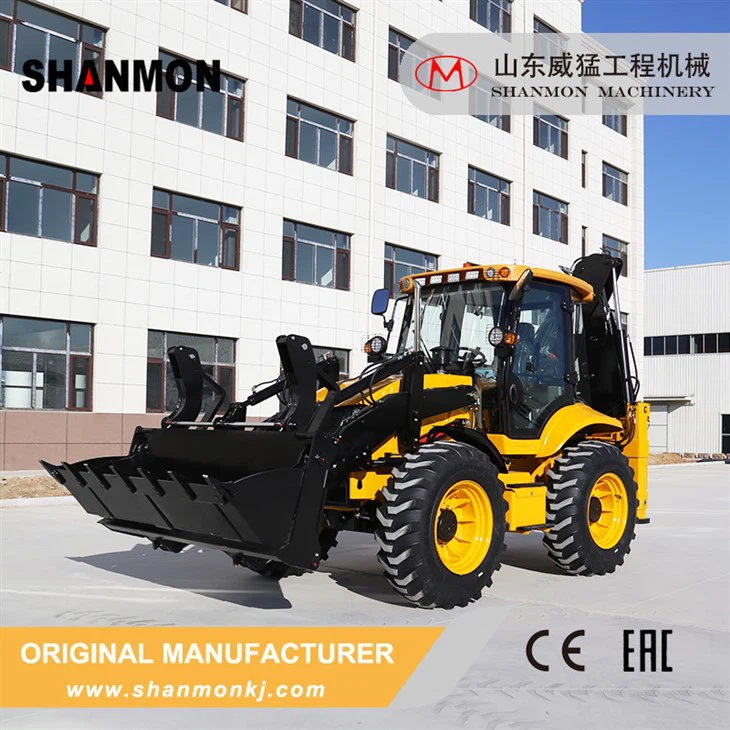

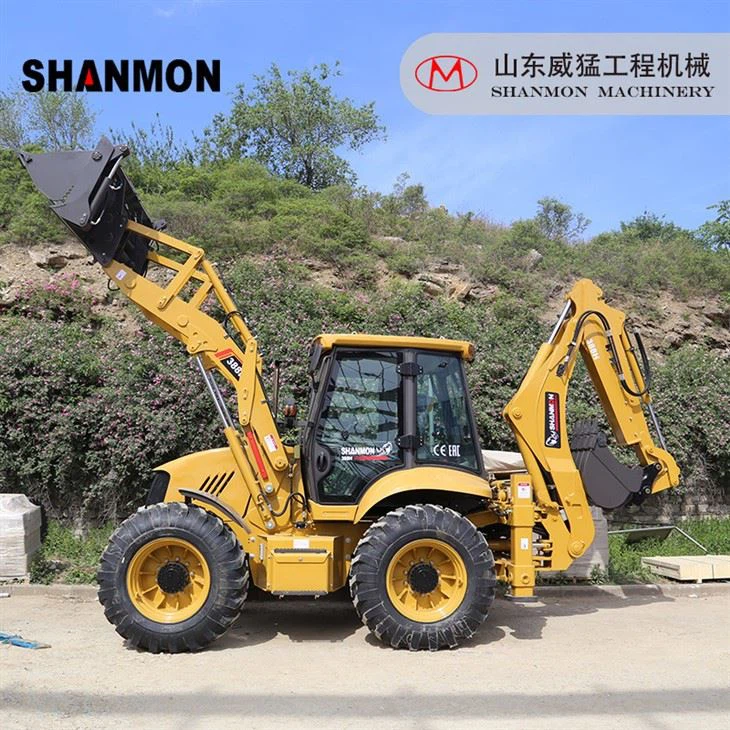

Backhoe Loader Shanmon 388H

Name: China Backhoe Loader Shanmon 388H Manufacturers, Factory - Low Price - SHANMON
Brand: SHANMON
SKU: 215830792

The 388H backhoe loader belongs to the latest generation of Shanmon backhoe loaders, which is developed for the n market with a number of innovations. The 388H backhoe loader is a user-friendly machine that offers top class performance.

Send Inquiry

The 388H backhoe loader belongs to the latest generation of Shanmon backhoe loaders, which is developed for the n market with a number of innovations. It is a user-friendly machine that offers top class performance. For now, Shanmon produces more than 1000 units backhoes every month, they are hot for sale.

Overall dimension	Operating Weight	10500KG
	Overall dimension(L×W×H)	6450×2530×3120mm
	Wheel base	2335mm
	Wheel tread	2050mm
	Ground Clearance	450mm
Performance	Loader bucket capacity	1.2m³
	Loader breakout force	47KN
	Loader lifting capacity	2500KG
	Loader dumping height	3050mm
	Loader dumping reach	870mm
	Loader digging depth	52mm
	Backhoe bucket capacity	0.3m³
	Backhoe bucket digging force	50KN
	Backhoe swing angle	180°
	Backhoe dumping height	4050mm
	Backhoe max digging depth	3820mm
	Max. traction force	86KN
Engine	Model	Yuchai YC4A105Z-T20
	Type	Turbocharging four-stroke
	Cylinder-inner diameter*stroke	4-108×132
	Rated power	75KW/100HP
	Rated speed	2200r/min
	Min. Fuel consumption	230g/kw.h
	Max.torque	400N.m
	Displacement	4.8L
Steering system	Type	Hydraulic Steering
	Diverter model	BZZ5-250
	Pump delivery	63ml/r
	Steering angle	±35°
	Min. turning radius	6950mm
Driving axle	Model	WZL100DF
	Manufacturer	China axle
	Max. load of front axle	13 ton
	Max. load of rear axle	13 ton
Transmission	Gearbox	Mechanically Operated Hydraulic Synchrinized Shift
	Model	ZL30
	Gears	4 forward and 4 reverse gears
	Hydraulic torque converter	YJ320
	Inlet pressure	0.4-0.65Mpa
	Outlet pressure	1.6-1.9Mpa
	Cooling mode	oil-cooling presssure circulation
	Pump delivery	40ml/r
Wheel	Front wheel size	16.9-28
	Rear wheel size	16.9-28
	Front tire pressure	0.35Mpa
	Rear tire pressure	0.35Mpa
	Travel speed	38Km/h
Brake system	Service brake	Gas pushed oil, built-in-selfregulation, self-balance
Brake system	Parking brake	Manual brake
System pressure	Loading hydraulic system	20Mpa
	Digging hydraulic system	20Mpa
	Steering hydraulic system	14Mpa
